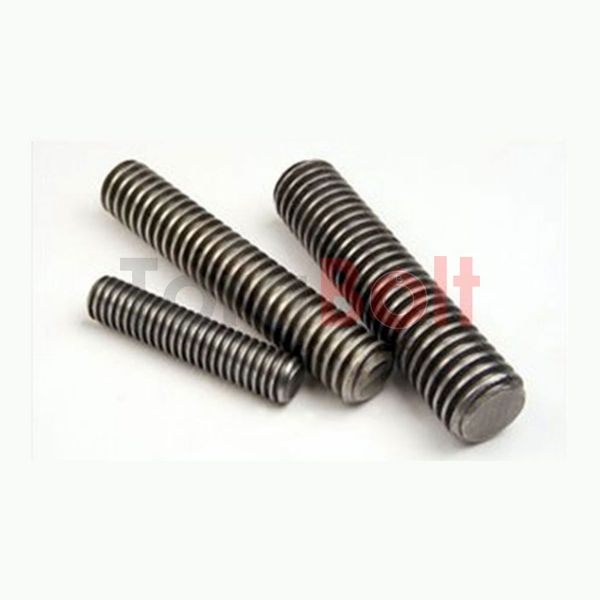

Werkstoff 2.4375 Monel K-500 Stainless Steel Threaded Rod
2.4375, N05500
2.4375 Fasteners like Threaded Rod are classified under Monel. Werkstoff 2.4375 Fasteners are internationally known as fasteners manufactured from monel K-500.
Related Products
K-Monel 500 Bolts Nickel-Copper K-500 Fasteners Monel K-500 Forgings Nickel-Copper K-500 Nuts Monel K-500 Socket Head Cap Screws Monel K-500 Springs Monel K500 Stud Bolts Alloy K-500 Washers 2.4375 Washers
Werkstoff 2.4375 Stainless Steel Threaded Rod Properties
Werkstoff 2.4375 Stainless Steel Threaded Rod Chemical Requirements
| UNS Designation Number | Alloy | General Name | Al | C, max | Cr | CuA | Fe, max | Mn, max | NiA | P, max | Si, max | Ti | Co, max | Mo | S, max | V | W | Cb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM F468 Grade N05500 | 500 | Ni-Cu-Al | 2.30 - 3.15 | 0.25 | . . . | balance | 2.0 | 1.5 | 63.0 - 70.0 | . . . | 0.5 | 0.35 - 0.85 | B | . . . | 0.01 | . . . | . . . | . . . |
Werkstoff 2.4375 Stainless Steel Threaded Rod Mechanical Requirements
| Alloy | Mechanical Property Marking | Nominal Thread Diameter, in. | HardnessA | Full-Size TestsB | Machined Specimen Tests | |||
|---|---|---|---|---|---|---|---|---|
| Tensile Strength, ksi | Yield Strength, min, ksiC | Tensile Strength, min, ksi | Yield Strength min, ksiC | Elongation in 4D, min, %D | ||||
| ASTM F468 Alloy Ni 500 | F 468W | 0.250 to 0.875 | 24-37 HRC | 130-180 | 90 | 130 | 90 | 20 |
