DIN 938 Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter

DIN 938 Equivalents

PN 82125 UNI 5911 CSN 21174

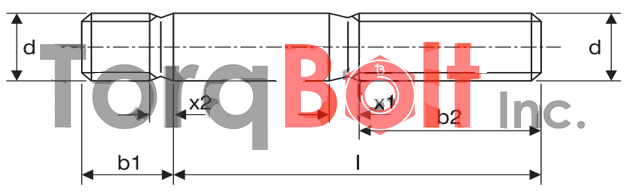

DIN 938 Double End Stud Bolts with Thread Engagement Length Equals to 1 x Diameter

Studs With Engagement Lengthd

DIN 938 Dimensions

DIAMETER (D)	PITCH	M/E 1XD (B1)	N/E (B2) L ≤ 200	N/E (B2) L = 125- 200	N/E (B2) L ≥ 200
M8	1.25	8	22	28	–
M10	1.5	10	26	32	45
M12	1.75	12	30	36	49
M14	2	14	34	40	53
M16	2	16	38	44	57
M18	2.5	18	42	48	61
M20	2.5	20	46	52	65
M22	2.5	22	50	56	69
M24	3	24	54	60	73
M27	3	27	60	66	79
M30	3.5	30	66	72	85
M33	3.5	33	72	78	91
M36	4	36	78	84	97
M39	4	39	84	90	103
M42	4.5	42	90	96	109
M45	4.5	45	96	102	115
M48	5	48	102	108	121
M52	5	52	110	116	129
