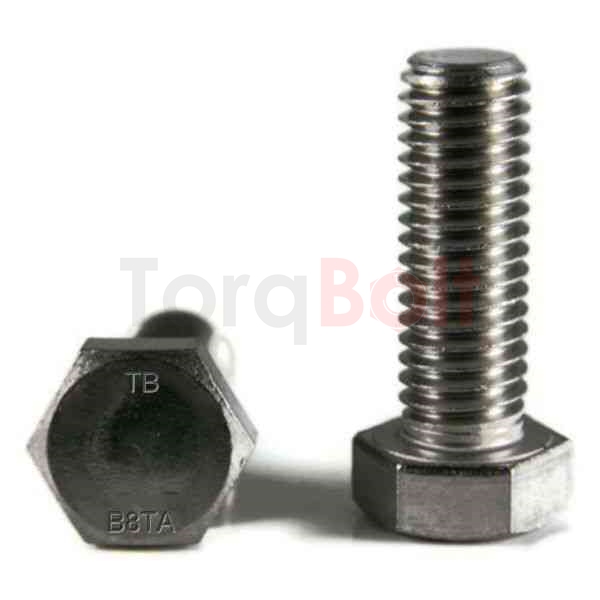

ASTM A320 Grade B8TA Stud Bolts | UNS S32100 Specifications
  • Fasteners
  • ASTM A320 Grade B8TA Stud Bolts

    • ASTM A320 Grade B8TA Stud Bolts

    321S31, BS2337, 1.4541, 321, S32100, X6CRNITI18-10

    A320 Grade B8TA Stud Bolts are manufactured from 321 Stainless Steel in accordance with ASTM A320 specification. Torqbolt is a prominent A320 Grade B8TA Stud Bolt supplier in India.

    Related Products

    321 Stainless Steel Bolting Type 321 Stainless Fasteners 321 Stainless Steel Forgings 321 Stainless Steel Nuts 321 Stainless Steel Machine Screws 321 Stainless Steel Stud Bolts SS 321 Washers Astm A193 Grade B8T Bolts Astm A193 Grade B8Ta Stud Bolts Astm A194 Grade 8T Nuts A194 Grade 8Ta Nuts Astm A320 Grade B8T Class 1 Bolts Astm A320 Grade B8Ta Stud Bolts 1.4541 Threaded Rod

    #ASTM A320 Grade B8TA Stud Bolts Properties

    ASTM A320 Grade B8TA Stud Bolts Chemical Requirements

    Austenitic Steels

    Grade Symbol UNS Designation C, max Mn, max P, max S, max Si, max Ni Cr Mo Se Ti N Nb E + Ta
    ASTM A320 B8TA S32100(321) Range,% 0.08 2.00 0.045 0.030, max 1.00 9.0- 12.0 17.0- 19.0 ... ... 5 × (C+N) min -0.7 max 010, max ...
    Product Variation, % Over or Under 0.01 over 0.04 over 0.010 over 0.005 over 0.05 over 0.15 0.20 ... ... 0.05 under 1 ...

    ASTM A320 Grade B8TA Stud Bolts Mechanical Requirements

    Austenitic Steels

    Grade and Class Diameter, in. [mm] Heat Treatment Minimum Tempering Temperature, °F [°C] Tensile Strength, min, ksi [MPa] Yield Strength, min, ksi [MPa] (0.2 % offset) Elongation in 2 in. or 50 mm, min, % Reduction of Area, min, % Hardness, max
    ASTM A320 B8TA Class 1A All diameters carbide solution treated in the  finished condition ... 75 [515] 30 [205] 30 50 192 HBW or 90  HRB
