ASTM A320 Grade B8MA Stud Bolts | UNS S31600 Specifications
  • Fasteners
  • ASTM A320 Grade B8MA Stud Bolts

    • ASTM A320 Grade B8MA Stud Bolts

    316S31, BS2347, 1.4401, 316, S31600, X5CRNIMO17-12-2

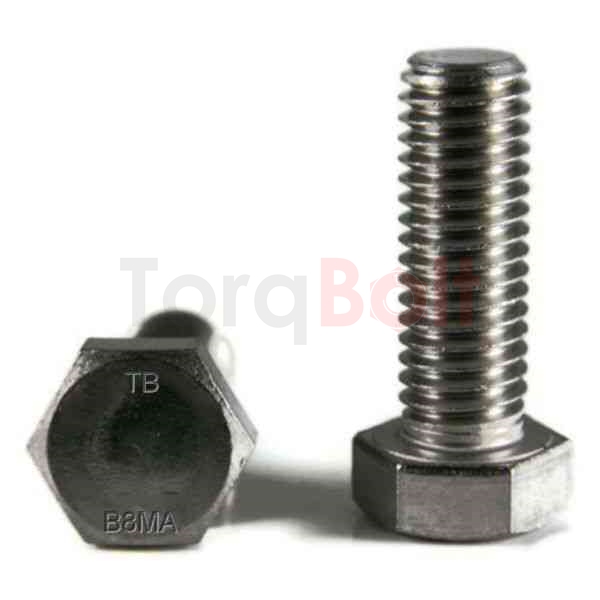

    A320 Grade B8MA Stud Bolts are manufactured from 316 Stainless Steel in accordance with ASTM A320 specification. Torqbolt is a prominent A320 gr B8MA stud bolt supplier in India.

    Related Products

    316 Stainless Bolts Type 316 Stainless Fasteners 316 Stainless Steel Forgings 316 Stainless Steel Nuts 316 Stainless Steel Machine Screws 316 SS Springs Type 316 Stainless Threaded Rod 316 Stainless Steel Flat Washers A4 70 Nuts A4 80 Stud Bolts Astm A193 Grade B8M Studs Astm A193 Grade B8M2 Class 2 Bolts Astm A193 Grade B8M3 Class 2 Bolts Astm A193 Grade B8Ma Stud Bolts A194 Grade 8M Nuts Astm A194 Grade 8Ma Nuts Astm A320 Grade B8M Stud Bolts Astm A320 Grade B8Ma Bolts Astm F594 Type 316 Nuts Astm F594H Stainless Steel Nuts Astm F593 Type 316 Stud Bolts Astm F593H Stainless Steel Bolts 1.4401 Threaded Rod

    ASTM A320 Grade B8MA Stud Bolts Properties

    ASTM A320 Grade B8MA Stud Bolts Chemical Requirements

    Austenitic Steels

    Grade Symbol UNS Designation C, max Mn, max P, max S, max Si, max Ni Cr Mo Se Ti N Nb E + Ta
    ASTM A320 B8MA S31600(316) Range,% 0.08 2.00 0.045 0.030, max 1.00 10.0 - 14.0 16.0 - 18.0 2.00 - 3.00 ... ... ... ...
    Product Variation, % Over or Under 0.01 over 0.04 over 0.010 over 0.005 over 0.05 over 0.15 0.20 0.10 ... ... ... ...

    ASTM A320 Grade B8MA Stud Bolts Mechanical Requirements

    Austenitic Steels

    Grade and Class Diameter, in. [mm] Heat Treatment Minimum Tempering Temperature, °F [°C] Tensile Strength, min, ksi [MPa] Yield Strength, min, ksi [MPa] (0.2 % offset) Elongation in 2 in. or 50 mm, min, % Reduction of Area, min, % Hardness, max
    ASTM A320 B8MA Class 1A All diameters carbide solution treated in the  finished condition ... 75 [515] 30 [205] 30 50 192 HBW or 90  HRB
