BS DIN EN 1.4545 15 5PH stainless Steel Threaded Rod | ASTM A564 UNS S15500 Specifications

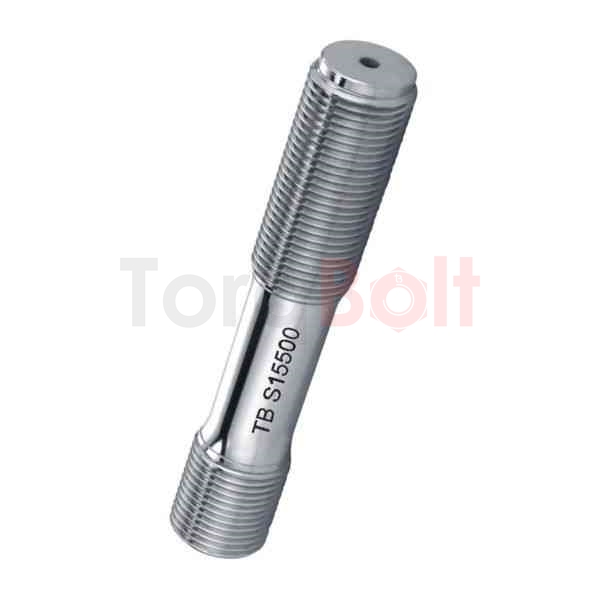

Werkstoff 1.4545 15 5PH Stainless Steel Threaded Rod

1.4545, S15500

1.4545 Fasteners like Threaded Rod are classified under Stainless Steel. Werkstoff 1.4545 Fasteners are internationally known as fasteners manufactured from 15 5PH Stainless Steel.

Related Products

15 5 Ph Stainless Steel Bolts 15 5 Ph Fasteners 15 5 Ph Forgings 15 5 Ph Stainless Steel Nuts 15 5 Ph Hex Cap Screws 15 5 Ph Threaded Rod Xm-12 Washers 1.4545 Screws

Werkstoff 1.4545 15 5PH Stainless Steel Threaded Rod Properties

Werkstoff 1.4545 15 5PH Stainless Steel Threaded Rod Chemical Requirements

UNS Designation Type C Mn P S Si Cr Ni Al Mo Ti Cu Other Elements
S15500 XM-12 0.07 1.00 0.040 0.030 1.00 14.00-15.50 3.50-5.50 ... ... ... 2.50-4.50 C

Werkstoff 1.4545 15 5PH Stainless Steel Threaded Rod Mechanical Requirements

Type Condition Suggested Hardening or Aging Treatment, or BothB,C,D Applicable Thickness, in. and Test DirectionE Tensile Strength, min Yield Strength, minF Elongation in 2 in. [50 mm] or 4D, min. % Reduction of area, min, % HardnessG Impact Charpy-V, min
Temperature, °F [°C] Time, h QuenchH ksi [MPa] ksi [MPa] Rockwell C, min Brinell, min ft·lbf J
XM-12 H900 900 [480] 1 air cool Up to 12 in. incl [300 mm] (L) 190 [1310] 170 [1170] 10 35 40 388 ...
Up to 12 in. incl [300 mm] (T) 6 15
H925 925 [495] 4 air cool Up to 12 in. incl [300 mm] (L) 170 [1170] 155 [1070] 10 38 38 375 5
Up to 12 in. incl [300 mm] (T) 7 20
H1025 1025 [550] 4 air cool Up to 12 in. incl [300 mm] (L) 155 [1070] 145 [1000] 12 45 35 331 15
Up to 12 in. incl [300 mm] (T) 8 27 10
H1075 1075 [580] 4 air cool Up to 12 in. incl [300 mm] (L) 145 [1000] 125 [860] 13 45 32 311 20
Up to 12 in. incl [300 mm] (T) 9 28 15
H1100 1100 [595] 4 air cool Up to 12 in. incl [300 mm] (L) 140 [965] 115 [795] 14 45 31 302 25
Up to 12 in. incl [300 mm] (T) 10 29 15
H1150 1150 [620] 4 air cool Up to 12 in. incl [300 mm] (L) 135 [930] 105 [725] 16 50 28 277 30
Up to 12 in. incl [300 mm] (T) 11 30 20
H1150M 1400 [760] for 2 h air cool plus Up to 12 in. incl [300 mm] (L) 115 [795] 75 [515] 18 55 24 255 55
1150 [620] for 4 h air cool Up to 12 in. incl [300 mm] (T) 14 35 35
