DIN 976 Plain End Stud Bolts/Threaded Rods
DIN 976 Equivalents
Metric Thread Stud Bolts

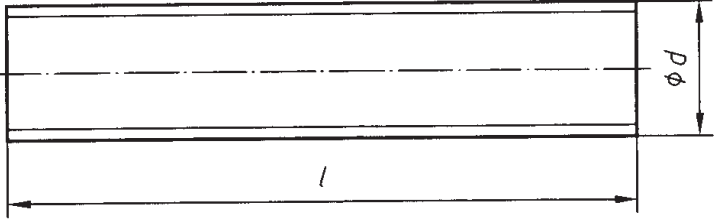

DIN 976 Dimensions
| d | P | L (mm) | Weight kg/1000pcs |
|---|---|---|---|
| M2 | 0.4 | 1000 | 18.7 |
| M2.5 | 0.45 | 1000 | 30 |
| M3 | 0.5 | 1000 | 44 |
| M3.5 | 0.6 | 1000 | 60 |
| M4 | 0.7 | 1000 | 78 |
| M5 | 0.8 | 1000 | 124 |
| M6 | 1 | 1000 | 177 |
| M8 | 1 / 1.25 | 1000 | 319 |
| M10 | 1 / 1.25 / 1.75 | 1000 | 500 |
| M12 | 1.5 / 2002 | 1000 | 725 |
| M14 | 1.5 / 2002 | 1000 | 970 |
| M16 | 1.5 / 2002 | 1000 | 1330 |
| M18 | 1.5 / 2.5 | 1000 | 1650 |
| M20 | 1.5 /2.5 | 1000 | 2080 |
| M22 | 1.5 /2.5 | 1000 | 2540 |
| M24 | 2 / 3 | 1000 | 3000 |
| M27 | 2 / 3 | 1000 | 3850 |
| M30 | 2 / 3.2005 | 1000 | 4750 |
| M33 | 2 / 3.2005 | 1000 | 5900 |
| M36 | 3 / 4 | 1000 | 6900 |
| M39 | 3 / 4 | 1000 | 8200 |
| M42 | 3 / 4.2005 | 1000 | 9400 |
| M45 | 3 / 4.2005 | 1000 | 11000 |
| M48 | 3 / 5 | 1000 | 12400 |
| M52 | 3 / 5 | 1000 | 14700 |
