DIN 934 Hexagon Full Nuts
DIN 934 Equivalent
ISO 4032 PN 82144 UNI 5588 CSN 21401

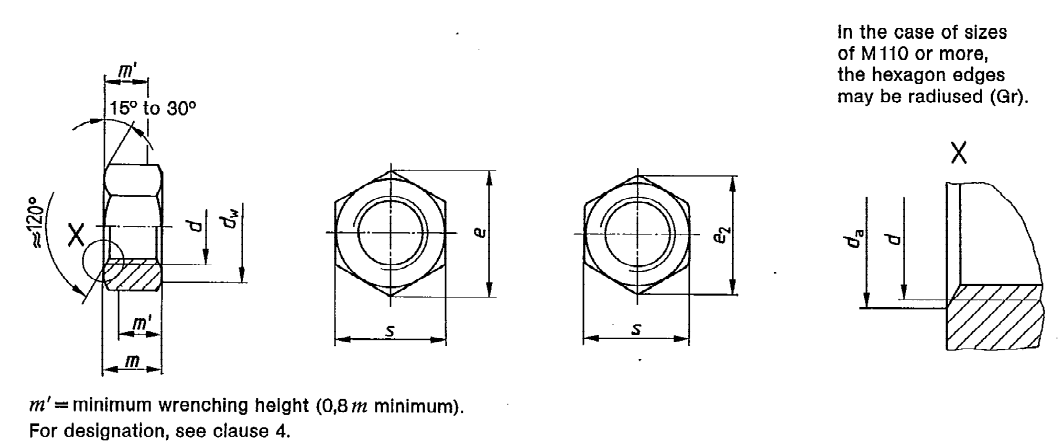

Hexagon Nuts
DIN 934 Dimensions
| Thread d | preferred threads |
M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | |
| c | max. | 0.20 | 0.20 | 0.30 | 0.40 | 0.40 | 0.50 | 0.50 | 0.60 | 0.60 | 0.60 |
| min. | 0.10 | 0.10 | 0.10 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |
| da | max. | 1.84 | 2.30 | 2.90 | 3.45 | 4.60 | 5.75 | 6.75 | 8.75 | 10.80 | 13.00 |
| min. | 1.60 | 2.00 | 2.50 | 3.00 | 4.00 | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | |
| dw | min. | 2.40 | 3.10 | 4.10 | 4.60 | 5.90 | 6.90 | 8.90 | 11.60 | 14.60 | 16.60 |
| e | min. | 3.41 | 4.32 | 5.45 | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 |
| m | max. | 1.30 | 1.60 | 2.00 | 2.40 | 3.20 | 4.70 | 5.20 | 6.80 | 8.40 | 10.80 |
| min. | 1.05 | 1.35 | 1.75 | 2.15 | 2.90 | 4.40 | 4.90 | 6.44 | 8.04 | 10.37 | |
| mw | min. | 0.80 | 1.10 | 1.40 | 1.70 | 2.30 | 3.50 | 3.90 | 5.20 | 6.40 | 8.30 |
| s | nominal = max. | 3.20 | 4.00 | 5.00 | 5.50 | 7.00 | 8.00 | 10.0 | 13.00 | 16.00 | 18.00 |
| min. | 3.02 | 3.82 | 4.82 | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | |
