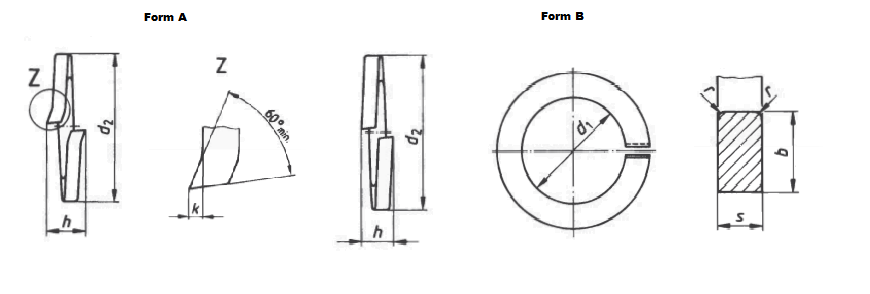

DIN 127 Rectangular Section Spring Washers
Dimensions of DIN 127 Standard Lock Washers / Spring Washers (Metric Size)

DIN 127 Lock Washers / Spring Washers Dimension Chart

D DS MAX DS MIN DC MAX DC MIN DK H MAX H MIN K MAX K MIN
M5 5 4.82 8.72 8.27 5.6 2.25 2 5 4.88
M6 6 5.82 10.22 9.277 6.7 2.7 2.45 6 5.82
M8 8 7.78 13.27 12.72 9 3.6 3.35 8 7.78
M10 10 9.78 16.27 15.69 11.2 4.5 4.13 10 9.78
M12 12 11.73 18.27 17.67 13.5 5.4 5.03 12 11.73
M14 14 13.73 21.33 20.67 15.8 6.3 5.93 14 13.73
M16 16 15.73 24.33 23.62 18 7.2 6.83 16 15.73
M20 20 19.67 30.33 29.55 22.5 9 8.5 20 19.67
M24 24 23.67 36.39 35.52 27 10.8 10.3 24 23.67
M30 30 29.67 45.39 44.52 33.8 13.5 13 30 29.67
M36 36 35.61 54.46 54.46 40.5 16.2 15.6 36 35.57
